Esteem Wood Cabinet Door (832)
Measurement Conversion Chart
Eighths
| 1/8 | 0.125 |
| 1/4 | 0.25 |
| 3/8 | 0.375 |
| 1/2 | 0.50 |
| 5/8 | 0.625 |
| 3/4 | 0.75 |
| 7/8 | 0.875 |
Sixteenths
| 1/16 | 0.0625 |
| 3/16 | 0.1875 |
| 5/16 | 0.3125 |
| 7/16 | 0.4375 |
| 9/16 | 0.5625 |
| 11/16 | 0.6875 |
| 13/16 | 0.8125 |
| 15/16 | 0.9375 |
Boring Options Available for the Esteem Wood Cabinet Door (832)
Most cabinet doors from CabinetDoorCenter can be purchased pre-bored for concealed or European style hinges.

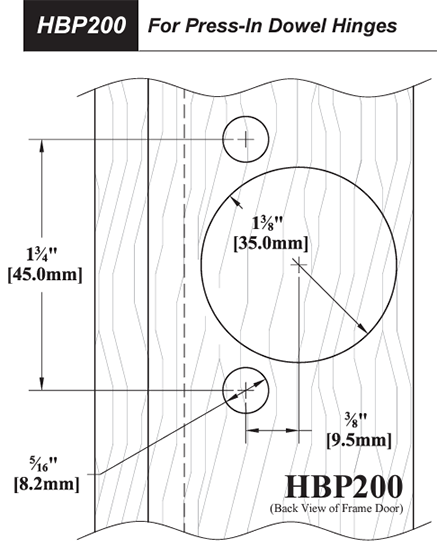

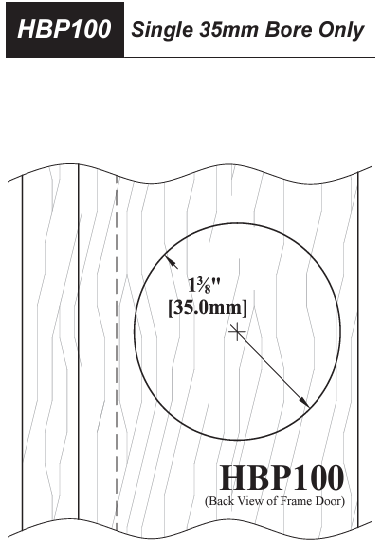

We offer two styles of borings, cup only and cup and dowel. Cup only use press-in cups without any screws or dowels for fast installation. Cup and Dowel include two additional borings for dowels, for a stronger connection.
| HBP100 | HBP200 |
|---|---|
|
|
Either boring option can be set either 3mm or 5mm from the door edge. Arched doors may also have boring selected for either the left or right side. Square panel doors do not have a left or right option, they can be spun around to put the borings on the needed side.
| Boring Name | Boring Description |
|---|---|
| T | HBP100, 5mm (.196") from Edge |
| U | HBP100, 3mm (.118") from Edge |
| A | HBP200, 5mm (.196") from Edge |
| B | HBP200, 3mm (.118") from Edge |
Materials Available for the Esteem Wood Cabinet Door (832)
Outside Edge Options Available for the Esteem Wood Cabinet Door (832)
Paint Options Available for the Esteem Wood Cabinet Door (832)
Stain Options Available for the Esteem Wood Cabinet Door (832)
The Esteem Cabinet Door features a square outsider edge and a detailed routed inside edge with a flat panel, an interesting look anywhere.
- Product Display Name: Esteem Wood Cabinet Door (832)
- Thickness: 3/4"
- Outside Edge Default: D7
- Joint Style: Mitered
- Panel Shape: Square
- Style and Rail Profile: MP687-76
- Panel Profile: PR324 RVSCP
- Minimum Width: 8
- Maximum Width: 30
- Minimum Height: 8
- Maximum Height: 72
